90~305VAC input, built-in active PFC function
Fully isolated plastic case with IP67 level
Constant voltage PWM style output
No load power consumption<0.5W
5 years warranty

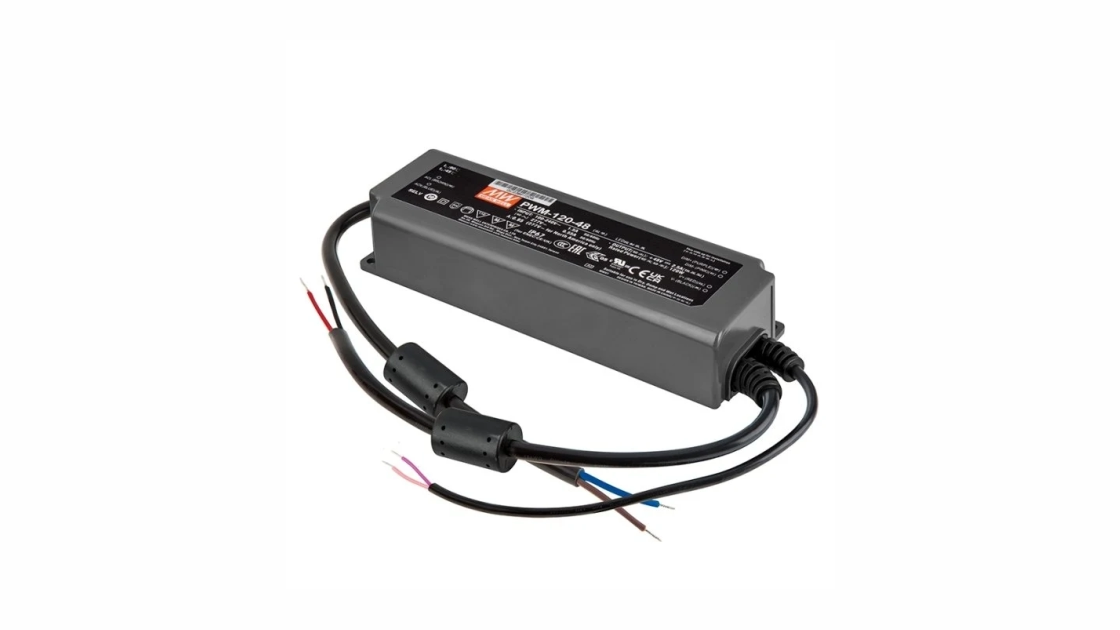

CV DALI DIM DRIVER
PWM series
- Details
- Downloads
Model List
| PWM-60-24DA2 | INPUT：90-305VAC OUTPUT：24VDC / 2.5A |
| PWM-60-48DA2 | INPUT：90-305VAC OUTPUT：48VDC / 1.25A |
| PWM -90-24DA2 | INPUT：90-305VAC OUTPUT：24VDC / 3.75A |
| PWM -90-48DA2 | INPUT：90-305VAC OUTPUT：48VDC / 1.88A |
| PWM -120-24DA2 | INPUT：90-305VAC OUTPUT：24VDC / 5A |
| PWM -120-48DA2 | INPUT：90-305VAC OUTPUT：48VDC / 2.5A |
| PWM -200-24DA2 | INPUT：90-305VAC OUTPUT：24VDC / 8.3A |
| PWM -200-48DA2 | INPUT：90-305VAC OUTPUT：48VDC / 4.17A |
Model Encoding
| TYPE | IP LEVEL / FUNCTION |
| DA2 | IP67 / Push Dimming or DALl-2 control technology |
